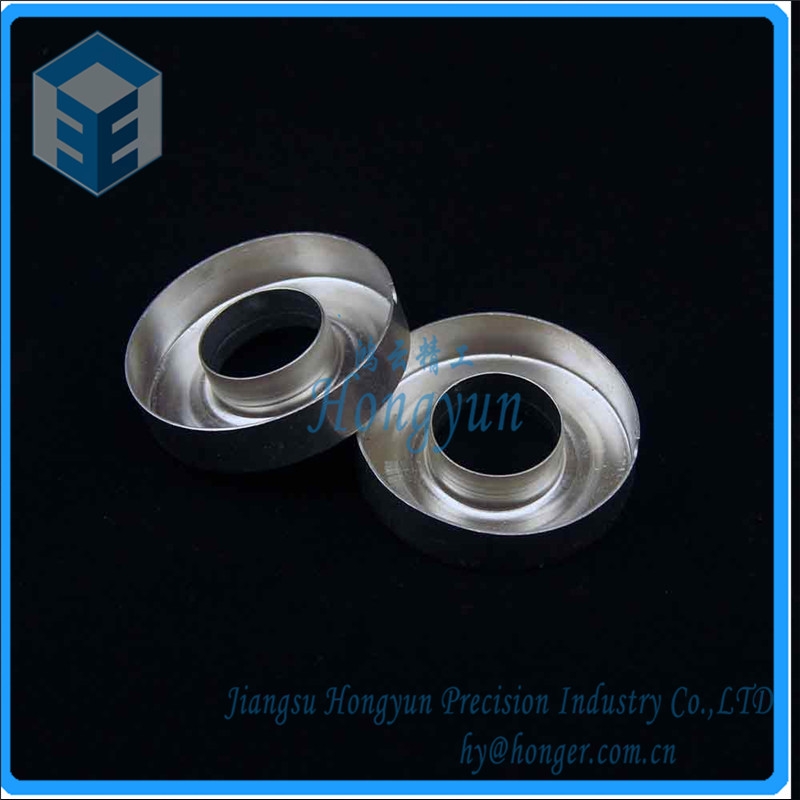

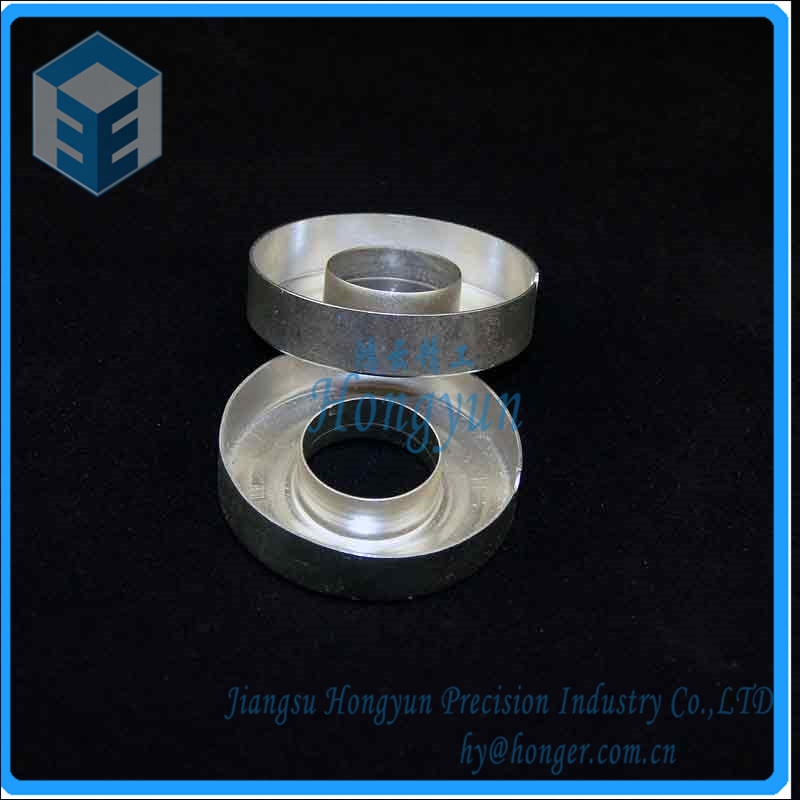

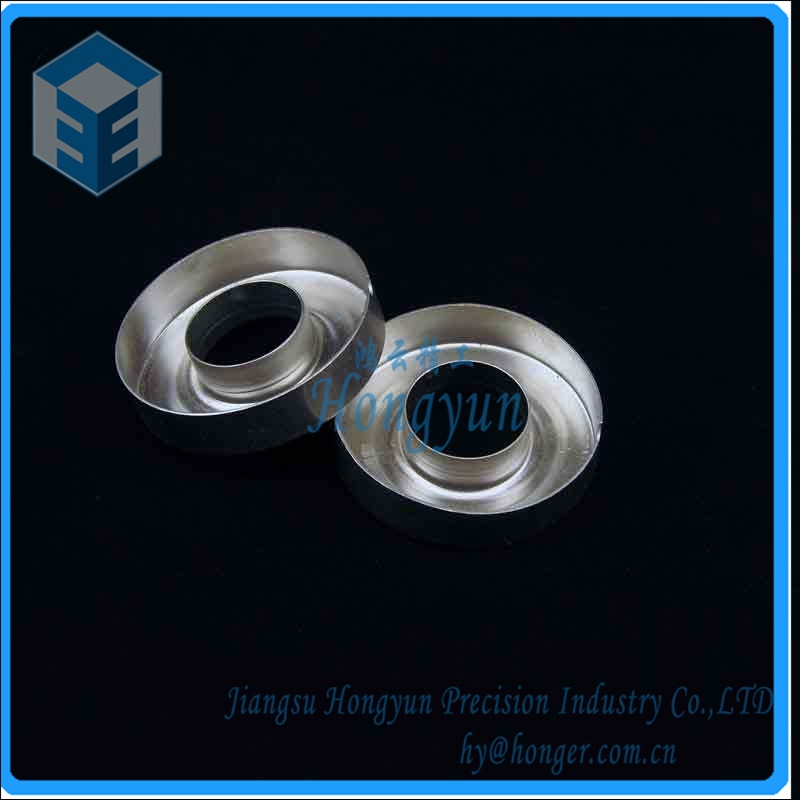

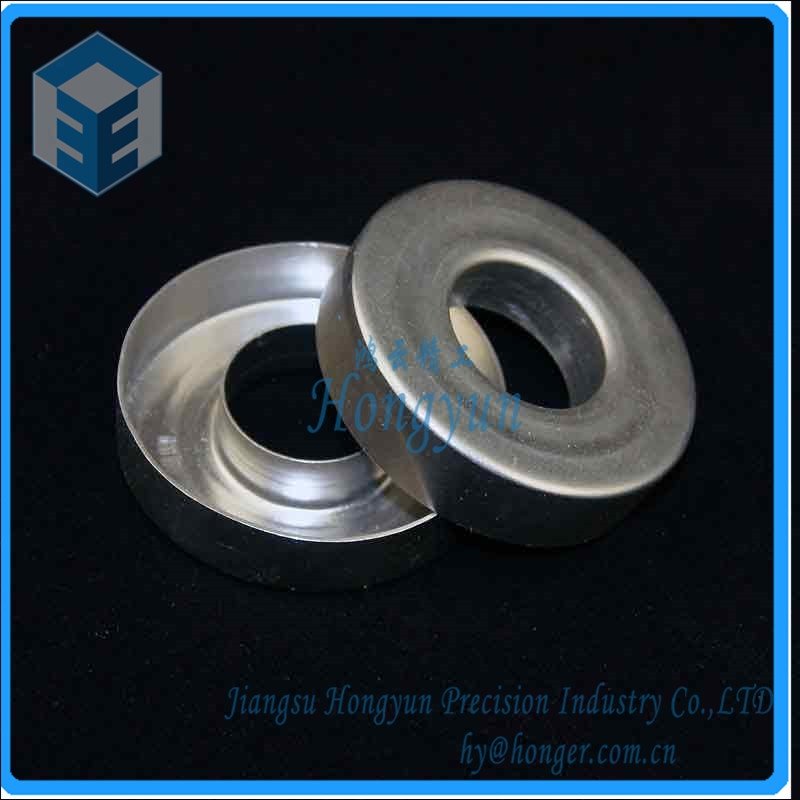

Product name：shielding case
Specifications：customized
Product Notes：
Product categories：Shielding Series
Description:
The shielding case is a soft ferromagnetic shield featuring superior material characteristics such
as high linearity and very low hysteresis.
The shield is designed for planar current sensing in combination with a magnetic field
sensor, i.e., Hall sensor, AMR sensor and a busbar conductor. The U-Shield protects the
sensor from parasitic magnetic fields caused by nearby conductors or other magnetic field
sources while at the same time it enhances sensitivity and signal-to-offset ratio of the sensors.
Magnetic Characteristics
Paramer Typical Value Unit
|
Parameter |
Typical value |
unit |
|
Relative Permeability |
100'000 |
a.u. |
|
Initial Relative Permeability |
7000 |
a.u. |
|
Saturation Flux Density |
1 |
T |
|
Hysteresis |
2.8 |
A/m |
|
Curie Temperature |
450 |
degC |
RAW MATERIAL DETAILS:
|
Material Specification |
U-Shield (T) |
Ni(%) |
|
standard thickness |
0.8MM |
48 |
|
Other thickness options |
0.35/0.5/1MM(on request) |
-- |
|
Other material grade options |
PC(1J79/1J85)(on request) |
7878--81 |
shielding case, shielding can, shielding tube and etc.
Customized service offered.
