Product introduction

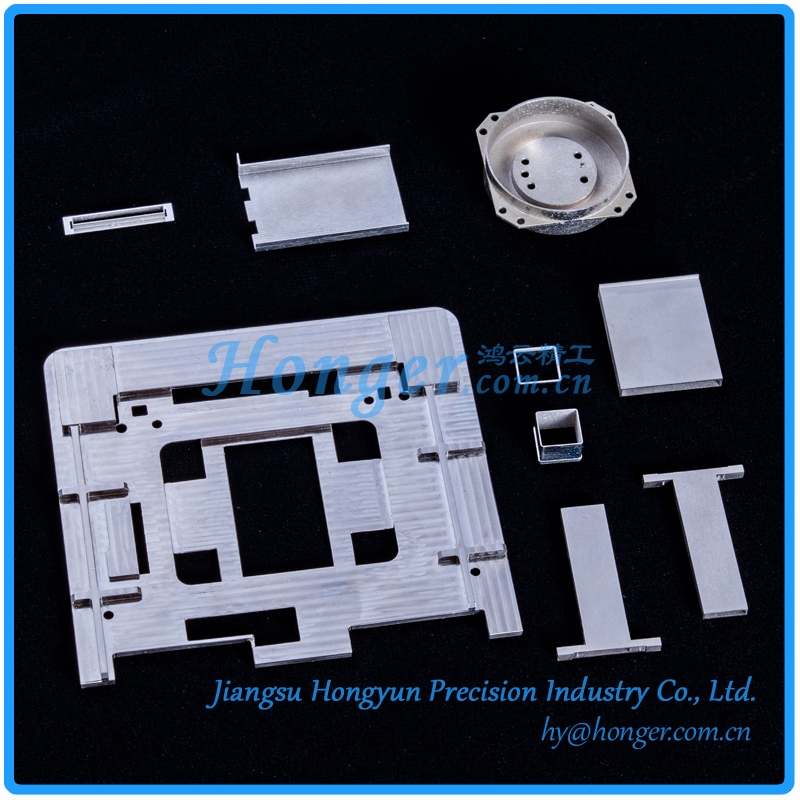

    Manufactured from high-quality Permalloy bars, plates, or forgings, and fabricated through combined processes including high-precision CNC milling, turning, and precision wire EDM, our components feature clean machined surfaces, high structural rigidity, and superior flatness. Designed for premium industrial equipment with strict requirements for structural stiffness, assembly positioning accuracy, and integrated magnetic shielding.

Core Features:

1. High-Rigidity Complex Frame & Cavity Machining
Utilizing multi-axis CNC machining centers, we can complete the precision milling of large-scale frames, micro-hole drilling, and complex contour shaping in a single setup. The products offer high overall rigidity and are free from welding deformation risks.

2. Integrated Multi-Surface Precision Forming
Through turn-mill combination centers or precisely coordinated multi-step processes, we achieve accurate machining of 3D structures such as cylindrical flanged bases and polygonal cavities. With unified datums and high forming accuracy, these parts can serve as structural bases with built-in magnetic shielding functions, directly supporting internal precision components and simplifying subsequent assembly levels for the client.

3. Stable Magnetic Shielding & Permeability Performance
Manufactured from high-nickel (approx. 80%) Permalloy material. Unlike sheet metal bending, machined components are formed through material removal, preserving the material's intrinsic grain structure and permeability characteristics to the greatest extent. Through proper stress-relief aging treatments, they maintain stable high initial permeability (μi) under complex loading conditions, effectively eliminating external magnetic field interference.

Primary Applications:

• High-End Semiconductor Equipment: Serves as high-rigidity magnetic shielding bases and precision load-bearing frames for lithography machines, ion implanters, and wafer inspection equipment, providing an ultra-flat installation reference surface.

• Precision Measuring Instruments & Optical Equipment: Applied as internal magnetic shielding partitions and core structural support frames in high-precision laser interferometers, electron microscopes, etc., ensuring critical optical paths or detection signals are free from electromagnetic interference.

• Aerospace Instrument Cabins: Acts as precision instrument mounting platforms or shielding cabins inside spacecraft, offering stable structural support and magnetic protection under severe temperature fluctuations and vibration conditions.

• Custom Sensor Modules: Used for complex metallic bases and cavity shielding covers in multi-channel magnetoresistive sensor arrays and high-precision current transformers, achieving precise positioning and isolation.

Product type

Machined Components

Product specification model

We offer one-to-one non-standard customization based on your 2D/3D drawings, including structural geometry, geometric tolerance requirements (flatness, parallelism, concentricity), surface micro-texture control, and post-processing options, providing you with a full-service journey from design blueprints to finished precision-machined components.
