Product introduction

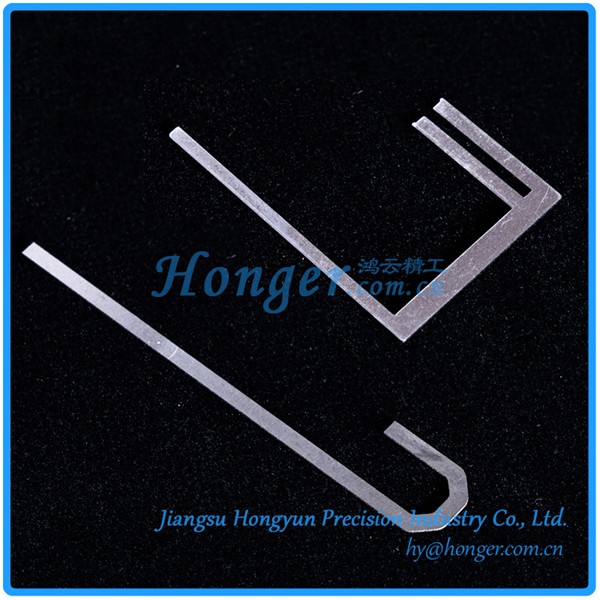

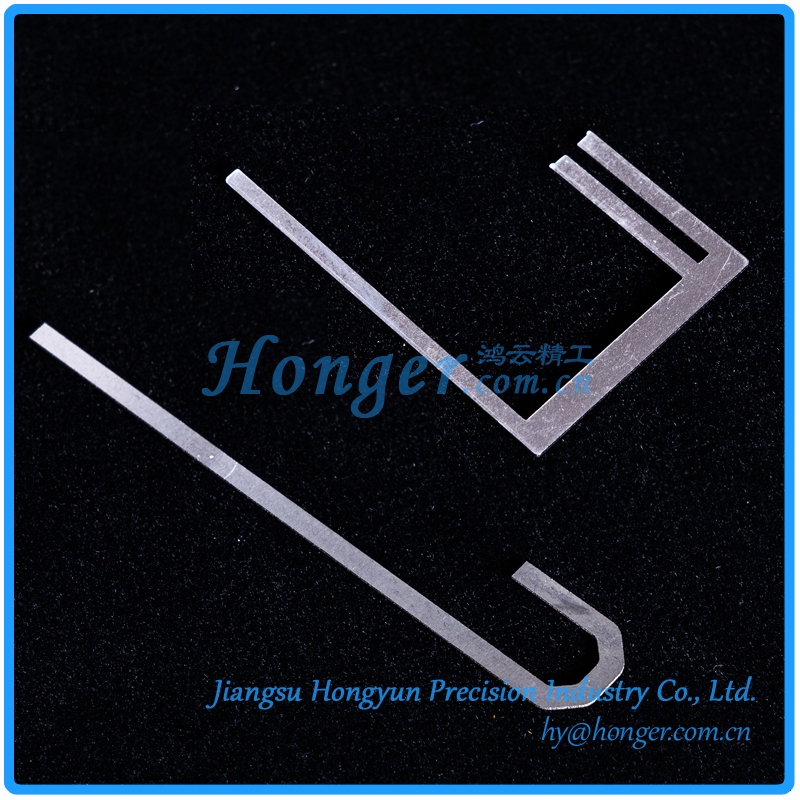

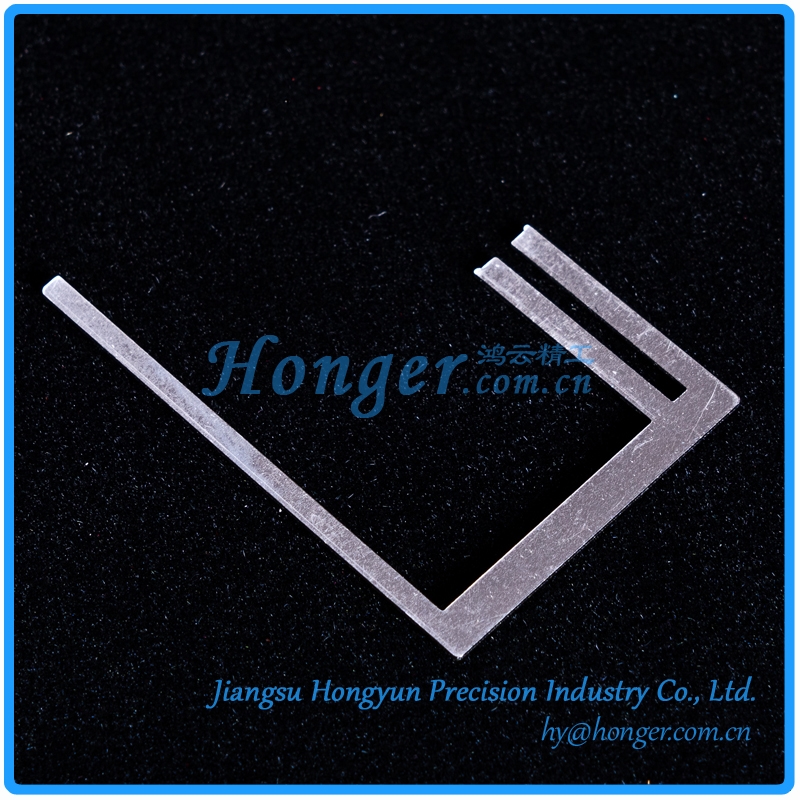

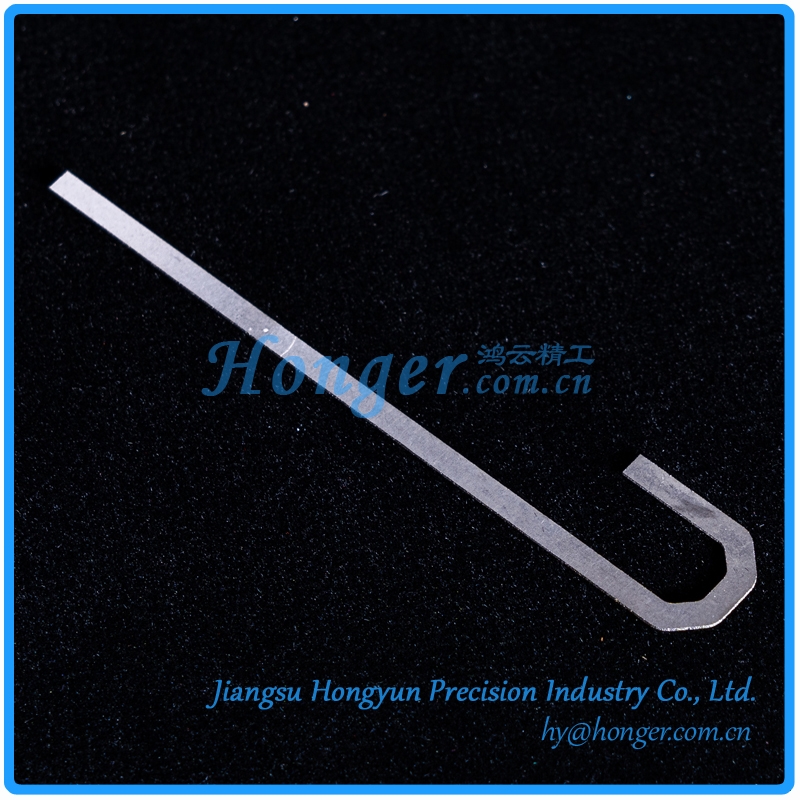

    Manufactured from high-quality Permalloy strips or sheets through high-precision progressive stamping or single-stage blanking/forming processes. Offering high geometric flexibility, the components can be produced in various forms including flat blanking, precision slotting, shallow drawing, embossing, and micro-bending based on requirements.

Core Features:

1. Versatile Irregular Stamping Capability
Capable of handling complex features such as asymmetric contours, elongated narrow slots, micro-holes, and non-standard mounting tabs. Ensures exceptional dimensional consistency and repetitive positioning accuracy in both flat blanking and micro-bending operations.

2. Strict Burr & Edge Control
Optimized die clearances combined with precision deburring processes deliver smooth, tear-free edges with minimal residual burrs, effectively preventing damage to cables or insulation during precision assembly.

3. Performance & Stress Optimization
Post-stamping stress-relief treatments eliminate internal residual stress, restoring and maintaining the material's high initial permeability (μi) for stable magnetic flux guiding and shielding performance.

Primary Applications:

• Magnetic Flux Connections & Guiding: Compensation shims and conductive bridges for transformers and magnetoresistive sensors.

• Inductive & Relay Components: Armature plates, magnetic isolation inserts, or snap-fit brackets for relays and solenoid valves.

• Structural Shielding & Grounding: Grounding contact plates and localized shielding inserts for high-frequency modules and RF connectors.

• Microelectronics & Precision Instruments: Magnetic isolation clips for PCBs and shielding clamps for precision optical/acoustic equipment.

Product type

Custom Stamped Components

Product specification model

Full customization available based on 2D/3D drawings.
