Product name：Permalloy Cut Cores
Specifications：Customized
Product Notes：
Product categories：Tape Wound & Cut Cores

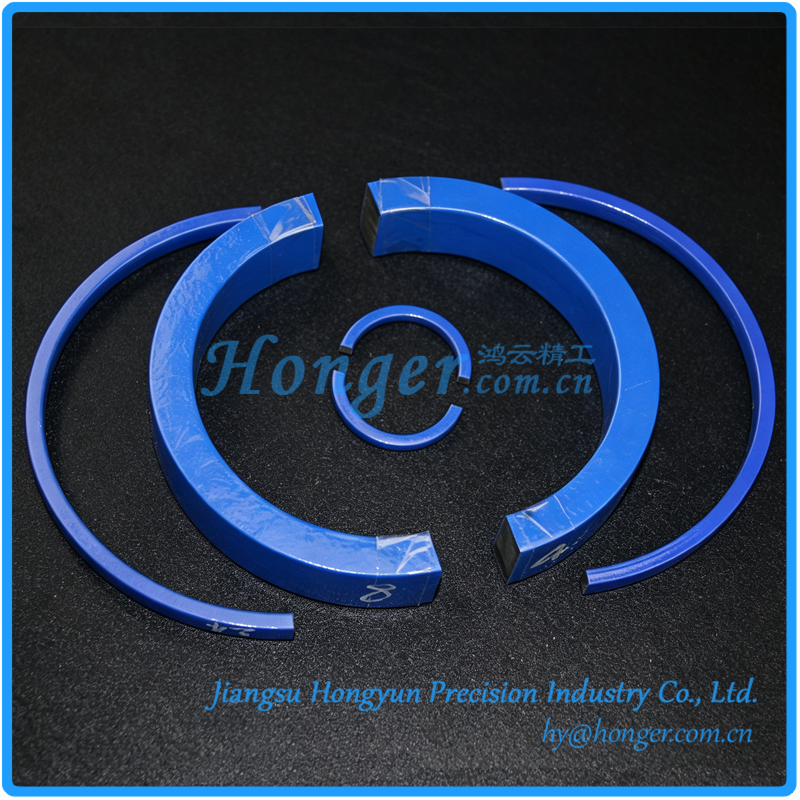

Permalloy cut cores are open-type magnetic cores manufactured by winding Permalloy strips, annealing, and then cutting the toroidal cores into split configurations. Featuring high magnetic permeability, low coercivity, and low core loss, they offer the advantage of an open structure that facilitates coil winding and assembly, making them ideal core solutions for precision transformers, instrument transformers, chokes, and various electromagnetic devices. Our Permalloy cut cores are available in two material series: 80% Nickel (typical grades 1J79/1J85) and 48~50% Nickel (typical grades 1J50), offered in full-cut, half-cut, and pair-cut (split-core) configurations. Custom sizes, materials, and cutting methods are available upon request.
Cut Type Descriptions:
Cut Type | Description | Applications |

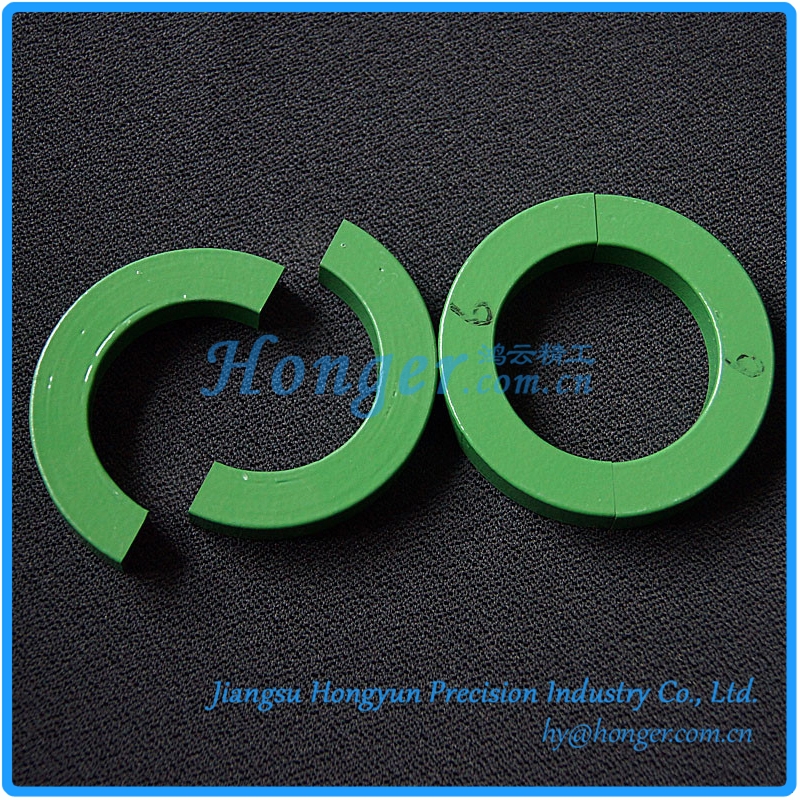

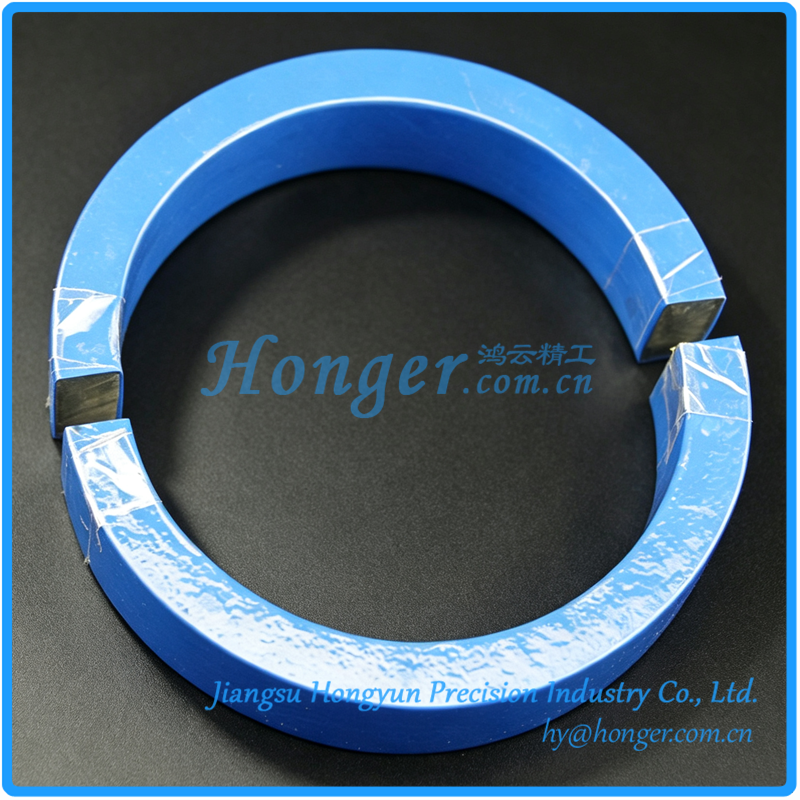

Pair-Cut (Split Core) | The core is symmetrically cut into two halves along the circumference, forming two air gaps | Ideal for direct insertion of pre-formed coils or large-current windings; dual air gaps allow gap length adjustment for performance optimization |
Full-Cut | A single cut creates an opening in the core while maintaining a closed overall structure | Convenient assembly with coils inserted directly through the opening, suitable for small to medium devices and high-volume production |
Half-Cut | Partial cut without complete separation, maintaining a nearly continuous magnetic circuit | Minimal impact on magnetic performance, suitable for high-precision instrumentation applications |
KEY FEATURES:
• High initial permeability, effectively improving device sensitivity and signal transmission efficiency while reducing coil turns;
• Low coercivity and low hysteresis loss, significantly reducing core loss and improving overall device efficiency;
• Open structure design allows coils to be directly inserted or snapped in place without pre-winding, significantly simplifying assembly and improving production efficiency;
• Annealing and precision grinding after cutting ensure smooth, flat cut surfaces, eliminating processing stresses and ensuring stable, reliable magnetic performance;
• Air gaps can be adjusted as needed to modify magnetic circuit reluctance, accommodating different inductance requirements and anti-saturation capabilities;
• Wide range of specifications, with custom sizes, strip thicknesses, and cutting methods available upon request.
TYPICAL APPLICATIONS:
• High-power switching power supply and inverter output choke cores, for power filtering and energy conversion, with full-cut construction facilitating coil assembly;
• Audio output transformer and single-ended amplifier transformer cores, with pair-cut/half-cut construction allowing gap adjustment for different bias current requirements;
• Precision current transformers and instrument transformer cores, for power measurement, instrumentation, and energy metering applications;
• Pulse transformer and driver transformer cores, for high-frequency switching circuits and industrial control equipment;
• Magnetic amplifiers and adjustable inductors, for power control, dimming circuits, and resonant converters.
Customizable according to requirements
